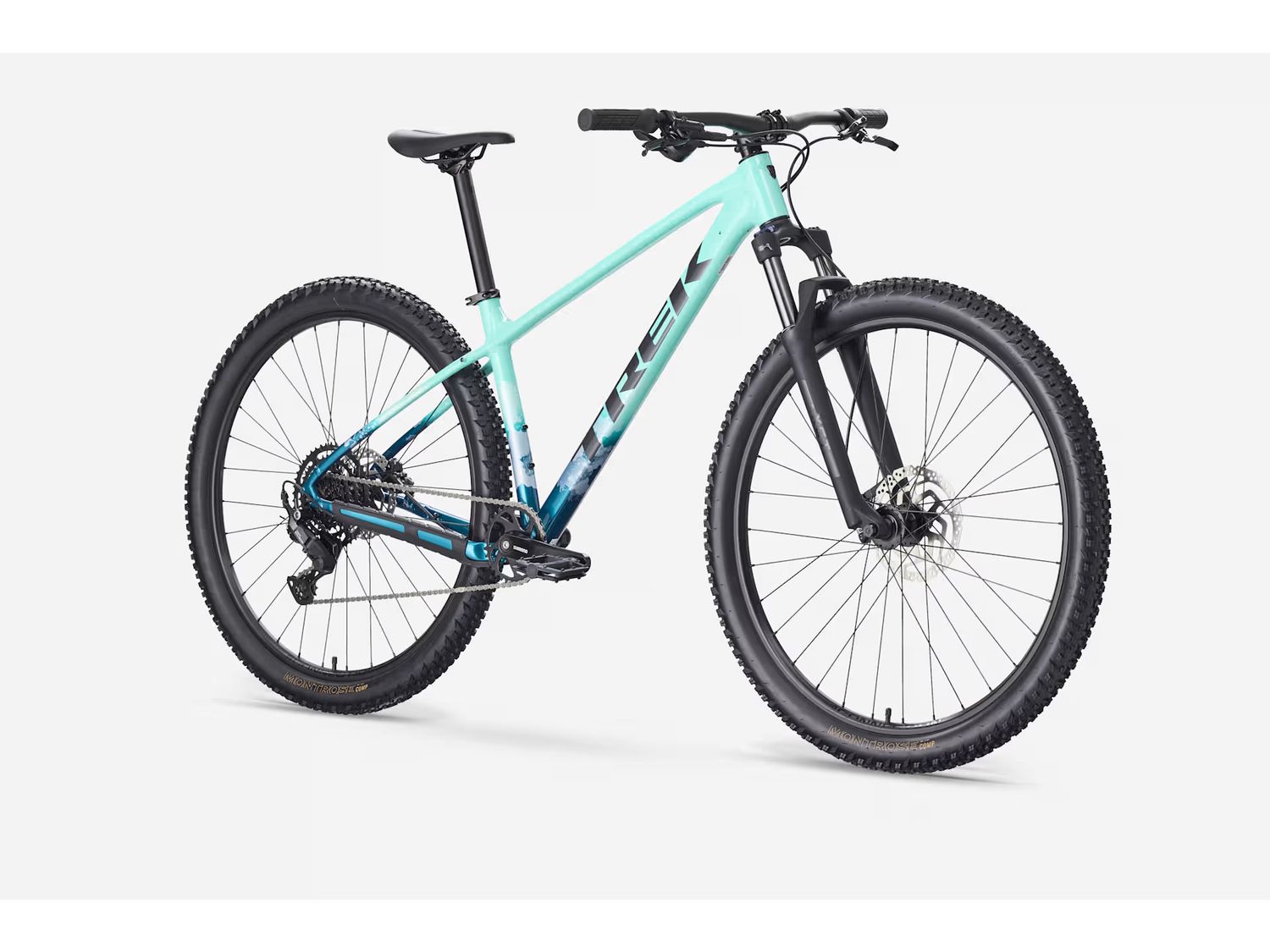

TREK MARLIN 5 GEN 3 2026
Share
$1,060.00
Price incl. GST (10%) $96.36
Size
Please choose
Colour
Please choose
In stock: 2 available
Product details
Brand: Trek
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| *Frame | Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork | Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
| Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| *Skewer rear | Size: XS , S , M , ML , L , XL , XXL
173x5 mm QR |
| Size: XS , S , M , ML , L , XL , XXL
Trek Thru-Skew |
|
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| *Tyre | Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" |
| Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" |
|
| Size: M , ML , L , XL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40" |
|
| Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
Drivetrain
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: XS , S , M , ML
Shimano CUES U4001, 32T, 52mm chain line, 170 mm length |
| Size: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length |
|
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
Components
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mm |
| Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
Weight
| Weight | M - 15.10 kg / 33.29 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
