Name: TREK MARLIN 5 GEN 3 2026
Brand: Trek
SKU: 17554 - Base
Price: 1010.0 AUD
Availability: OutOfStock

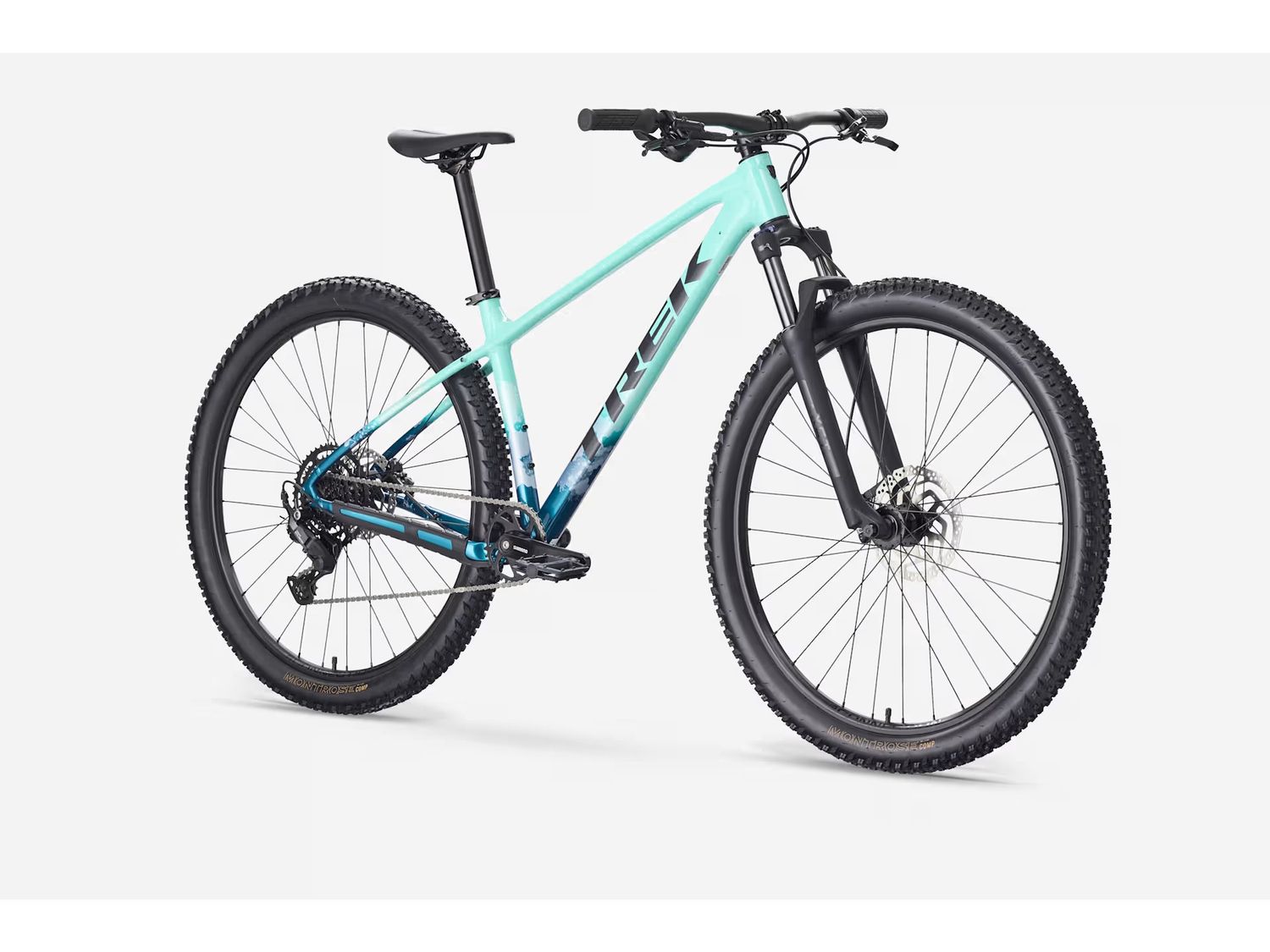

TREK MARLIN 5 GEN 3 2026

$1,010.00

Sold out

Price incl. GST (10%) $91.82

Colour

Please choose

Size

Please choose

Sold out

Product Details

Brand: Trek

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

*Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Frame	Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Skewer rear	Size: XS , S , M , ML , L , XL , XXL 173x5 mm QR
*Skewer rear	Size: XS , S , M , ML , L , XL , XXL Trek Thru-Skew
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14 g stainless steel, black
*Tyre	Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
	Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
	Size: M , ML , L , XL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"
	Size: M , ML , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

Drivetrain

Shifter	Shimano U4000, 9-speed
Rear derailleur	Shimano CUES U4000
*Crank	Size: XS , S , M , ML Shimano CUES U4001, 32T, 52mm chain line, 170 mm length
*Crank	Size: L , XL , XXL Shimano CUES U4001, 32T, 52mm chain line, 175mm length
Bottom bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500
Pedal	VP-536 nylon platform

Components

Saddle	Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
*Seatpost	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Trek Line Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160 mm
*Brake rotor	Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180 mm
Brake Set	Shimano MT200 hydraulic disc

Weight

Weight	M - 15.10 kg / 33.29 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
